1、概述
XMLConfigBuilder主要的作用是从myabtis XML文件中解析相关数据到Configuration中。

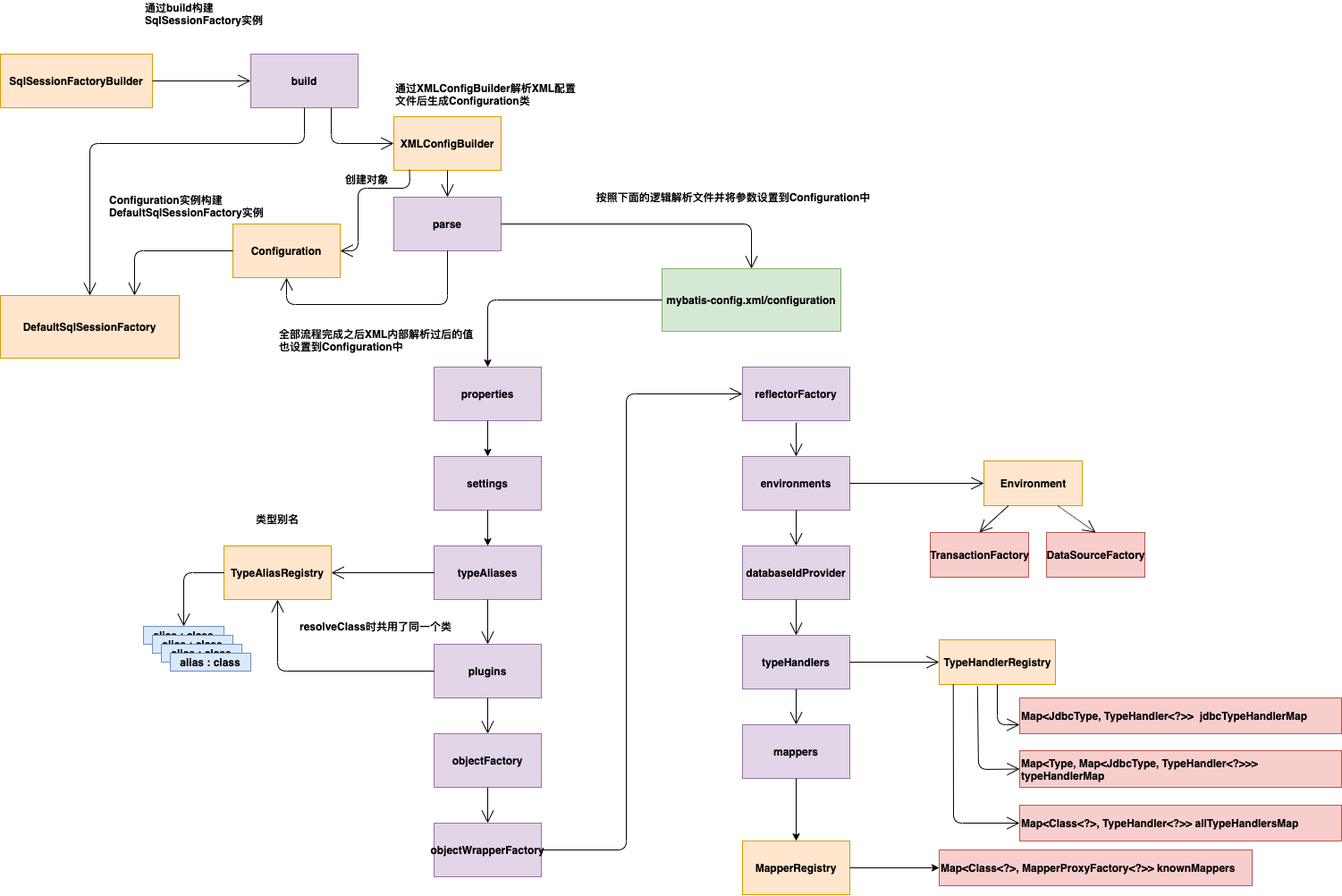

2、XMLConfigBuilder解析过程
在XMLConfigBuilder内部解析XML文件的操作实际上就委托给XPathParser这个工具类来完成的。
parse()方法代码如下：
public Configuration parse() {
// 对于一个Mybatis运行时配置文件只能解析一次
if (parsed) {
throw new BuilderException("Each XMLConfigBuilder can only be used once.");
}
parsed = true;
// 使用XPathParser解析XML文件中以/configuration为根结点的内容
// 调用parseConfiguration构造Configuration
parseConfiguration(parser.evalNode("/configuration"));
return configuration;
}
parseConfiguration方法代码如下：
private void parseConfiguration(XNode root) {
try {
// 解析properties节点
// issue #117 read properties first
propertiesElement(root.evalNode("properties"));
// 解析settings节点
Properties settings = settingsAsProperties(root.evalNode("settings"));
// 将vfsImpl属性设置到Configuration中
loadCustomVfs(settings);
// 将logImpl属性设置到Configuration中
loadCustomLogImpl(settings);
// 解析typeAliases节点
typeAliasesElement(root.evalNode("typeAliases"));
// 解析plugins节点
pluginElement(root.evalNode("plugins"));
// 解析objectFactory节点
objectFactoryElement(root.evalNode("objectFactory"));
// 解析objectWrapperFactory节点
objectWrapperFactoryElement(root.evalNode("objectWrapperFactory"));
// 解析reflectorFactory节点
reflectorFactoryElement(root.evalNode("reflectorFactory"));
settingsElement(settings);
// 解析environments节点
// read it after objectFactory and objectWrapperFactory issue #631
environmentsElement(root.evalNode("environments"));
// 解析databaseIdProvider节点
databaseIdProviderElement(root.evalNode("databaseIdProvider"));
// 解析typeHandlers节点
typeHandlerElement(root.evalNode("typeHandlers"));
// 解析mappers节点
mapperElement(root.evalNode("mappers"));
} catch (Exception e) {
throw new BuilderException("Error parsing SQL Mapper Configuration. Cause: " + e, e);
}
}
3、解析properties节点
propertiesElement方法代码如下：
private void propertiesElement(XNode context) throws Exception {
if (context != null) {
// 获取所有子标签下的name和value属性，并构造成Properties。
Properties defaults = context.getChildrenAsProperties();
// 获取properties标签的resource属性，比如<properties resource="***/***.properties">
String resource = context.getStringAttribute("resource");
// 获取properties标签的url属性
String url = context.getStringAttribute("url");
// 如果两个属性都存在的情况下是不允许的，抛出BuilderException异常
if (resource != null && url != null) {
throw new BuilderException("The properties element cannot specify both a URL and a resource based property file reference. Please specify one or the other.");
}
// 如果resource属性不为空，则直接解析resource路径下的properties文件
// 并将Properties属性合并到一起
if (resource != null) {
defaults.putAll(Resources.getResourceAsProperties(resource));
// 如果url属性不为空，则解析URL指向的Properties文件内容
} else if (url != null) {
defaults.putAll(Resources.getUrlAsProperties(url));
}
Properties vars = configuration.getVariables();
// 如果Configuration的variables字段不为空，则补充这些属性
if (vars != null) {
defaults.putAll(vars);
}
parser.setVariables(defaults);
// 将从XML文件中解析到的内容设置到Configuration中
configuration.setVariables(defaults);
}
}
4、解析settings节点
private Properties settingsAsProperties(XNode context) {
if (context == null) {
return new Properties();
}
// 解析settings标签下的全部property标签
Properties props = context.getChildrenAsProperties();
// Check that all settings are known to the configuration class
MetaClass metaConfig = MetaClass.forClass(Configuration.class, localReflectorFactory);
// 检查所有property的name是否都能在Configuration类中找到对应的setter方法
for (Object key : props.keySet()) {
// 如果没有对应的方法，那么就抛出BuilderException异常
if (!metaConfig.hasSetter(String.valueOf(key))) {
throw new BuilderException("The setting " + key + " is not known. Make sure you spelled it correctly (case sensitive).");
}
}
// 返回解析到的properties
return props;
}
5、解析typeAliases节点
// 解析类型别名
private void typeAliasesElement(XNode parent) {
if (parent != null) {
for (XNode child : parent.getChildren()) {
// 如果子标签是package
if ("package".equals(child.getName())) {
// 获取package标签的name属性，也就是包名
String typeAliasPackage = child.getStringAttribute("name");
// 这是使用的是TypeAliasRegistry来解析注册包名下全部的类型具体逻辑下面会详细说明
configuration.getTypeAliasRegistry().registerAliases(typeAliasPackage);
} else {
// 如果是typeAlias标签，那么就获取alias及type属性
String alias = child.getStringAttribute("alias");
String type = child.getStringAttribute("type");
try {
// 获取type的Class类
Class<?> clazz = Resources.classForName(type);
if (alias == null) {
// 将类型注册到typeAliasRegistry中
typeAliasRegistry.registerAlias(clazz);
} else {
// 将类型和别名注册到typeAliasRegistry中
typeAliasRegistry.registerAlias(alias, clazz);
}
} catch (ClassNotFoundException e) {
throw new BuilderException("Error registering typeAlias for '" + alias + "'. Cause: " + e, e);
}
}
}
}
}
这个方法中用到了TypeAliasRegistry，这里详细介绍下它的具体注册逻辑。
这个类在被创建的时候就注册了一些别名，代码如下：
public TypeAliasRegistry() {
registerAlias("string", String.class);
registerAlias("byte", Byte.class);
registerAlias("long", Long.class);
registerAlias("short", Short.class);
registerAlias("int", Integer.class);
registerAlias("integer", Integer.class);
registerAlias("double", Double.class);
registerAlias("float", Float.class);
registerAlias("boolean", Boolean.class);
registerAlias("byte[]", Byte[].class);
registerAlias("long[]", Long[].class);
registerAlias("short[]", Short[].class);
registerAlias("int[]", Integer[].class);
registerAlias("integer[]", Integer[].class);
registerAlias("double[]", Double[].class);
registerAlias("float[]", Float[].class);
registerAlias("boolean[]", Boolean[].class);
registerAlias("_byte", byte.class);
registerAlias("_long", long.class);
registerAlias("_short", short.class);
registerAlias("_int", int.class);
registerAlias("_integer", int.class);
registerAlias("_double", double.class);
registerAlias("_float", float.class);
registerAlias("_boolean", boolean.class);
registerAlias("_byte[]", byte[].class);
registerAlias("_long[]", long[].class);
registerAlias("_short[]", short[].class);
registerAlias("_int[]", int[].class);
registerAlias("_integer[]", int[].class);
registerAlias("_double[]", double[].class);
registerAlias("_float[]", float[].class);
registerAlias("_boolean[]", boolean[].class);
registerAlias("date", Date.class);
registerAlias("decimal", BigDecimal.class);
registerAlias("bigdecimal", BigDecimal.class);
registerAlias("biginteger", BigInteger.class);
registerAlias("object", Object.class);
registerAlias("date[]", Date[].class);
registerAlias("decimal[]", BigDecimal[].class);
registerAlias("bigdecimal[]", BigDecimal[].class);
registerAlias("biginteger[]", BigInteger[].class);
registerAlias("object[]", Object[].class);
registerAlias("map", Map.class);
registerAlias("hashmap", HashMap.class);
registerAlias("list", List.class);
registerAlias("arraylist", ArrayList.class);
registerAlias("collection", Collection.class);
registerAlias("iterator", Iterator.class);
registerAlias("ResultSet", ResultSet.class);
}
registerAliases()注册包名的方法逻辑如下：
public void registerAliases(String packageName) {
registerAliases(packageName, Object.class);
}
public void registerAliases(String packageName, Class<?> superType) {
ResolverUtil<Class<?>> resolverUtil = new ResolverUtil<>();
// 解析包名路径下全部的类型
resolverUtil.find(new ResolverUtil.IsA(superType), packageName);
Set<Class<? extends Class<?>>> typeSet = resolverUtil.getClasses();
for (Class<?> type : typeSet) {
// Ignore inner classes and interfaces (including package-info.java)
// 如果是内部类或者接口则跳过
// Skip also inner classes. See issue #6
if (!type.isAnonymousClass() && !type.isInterface() && !type.isMemberClass()) {
// 调用registerAlias注册类型到typeAliases中
registerAlias(type);
}
}
}
registerAlias方法代码如下：
public void registerAlias(Class<?> type) {
// 以类型的名称作为别名(不包含包名的类名)
String alias = type.getSimpleName();
// 判断该类型是被@Alias注解标记，如果存在注解则取注解的值。
Alias aliasAnnotation = type.getAnnotation(Alias.class);
if (aliasAnnotation != null) {
alias = aliasAnnotation.value();
}
// 调用registerAlias的重载方法，将别名和类型注册到typeAliases中
registerAlias(alias, type);
}
// 注册alias和value到typeAliases中
public void registerAlias(String alias, Class<?> value) {
// 如果此时不存在别名，那么会抛出异常
if (alias == null) {
throw new TypeException("The parameter alias cannot be null");
}
// 将别名首字母变成小写
// issue #748
String key = alias.toLowerCase(Locale.ENGLISH);
// 如果已经存在，那么就抛出异常
if (typeAliases.containsKey(key) && typeAliases.get(key) != null && !typeAliases.get(key).equals(value)) {
throw new TypeException("The alias '" + alias + "' is already mapped to the value '" + typeAliases.get(key).getName() + "'.");
}
// 注册别名和类型信息
typeAliases.put(key, value);
}
6、解析plugins节点
mybatis的插件是这个时候被注册的。
举个例子：
<plugins>
<plugin interceptor="org.mybatis.example.ExamplePlugin">
<property name="someProperty" value="100"/>
</plugin>
</plugins>
代码如下：
private void pluginElement(XNode parent) throws Exception {
if (parent != null) {
// 遍历plugins标签的子节点
for (XNode child : parent.getChildren()) {
// 获取子节点的interceptor的属性，该属性为类型的完全限定名
String interceptor = child.getStringAttribute("interceptor");
// 获取这个interceptor的全部属性，并封装成Properties
Properties properties = child.getChildrenAsProperties();
// 构建这个interceptor的实例。
Interceptor interceptorInstance = (Interceptor) resolveClass(interceptor).getDeclaredConstructor().newInstance();
// 为这个interceptor的实例设置属性
interceptorInstance.setProperties(properties);
// 将interceptor属性设置到Configuration中
configuration.addInterceptor(interceptorInstance);
}
}
}
这里使用了resolveClass来解析类型的Class对象，代码如下：
protected <T> Class<? extends T> resolveClass(String alias) {
if (alias == null) {
return null;
}
try {
// 调用resolveAlias来解析alias的类型
return resolveAlias(alias);
} catch (Exception e) {
throw new BuilderException("Error resolving class. Cause: " + e, e);
}
}
protected <T> Class<? extends T> resolveAlias(String alias) {
// 调用别名管理器的resolveAlias的方法解析别名为alias
return typeAliasRegistry.resolveAlias(alias);
}
TypeAliasRegistry中的resolveAlias方法如下
public <T> Class<T> resolveAlias(String string) {
try {
if (string == null) {
return null;
}
// 首先尝试从typeAlias中获取类型，如果不存在，则直接解析类名。
// issue #748
String key = string.toLowerCase(Locale.ENGLISH);
Class<T> value;
if (typeAliases.containsKey(key)) {
value = (Class<T>) typeAliases.get(key);
} else {
value = (Class<T>) Resources.classForName(string);
}
return value;
} catch (ClassNotFoundException e) {
throw new TypeException("Could not resolve type alias '" + string + "'. Cause: " + e, e);
}
}
7、解析objectFactory节点
在 MyBatis 中，默认的 ObjectFactory 要做的就是实例化查询结果对应的目标类，有两种方式可以将查询结果的值映射到对应的目标类，一种是通过目标类的默认构造方法，另外一种就是通过目标类的有参构造方法。
解析代码如下：
private void objectFactoryElement(XNode context) throws Exception {
if (context != null) {
// 获取objectFactory的type属性
String type = context.getStringAttribute("type");
// 获取objectFactory的properties属性
Properties properties = context.getChildrenAsProperties();
// 实例化ObjectFactory，逻辑与实例化plugin一致
ObjectFactory factory = (ObjectFactory) resolveClass(type).getDeclaredConstructor().newInstance();
// 将属性设置到ObjectFactory中
factory.setProperties(properties);
// 将ObjectFactory对象设置到Configuration属性中
configuration.setObjectFactory(factory);
}
}
8、解析objectWrapperFactory节点
实际用途待补充
解析代码如下：
private void objectWrapperFactoryElement(XNode context) throws Exception {
if (context != null) {
// 获取objectWrapperFactory标签的type属性
String type = context.getStringAttribute("type");
// 实例化objectWrapperFactory对象
ObjectWrapperFactory factory = (ObjectWrapperFactory) resolveClass(type).getDeclaredConstructor().newInstance();
// 将objectWrapperFactory对象设置到Configuration中
configuration.setObjectWrapperFactory(factory);
}
}
9、解析reflectorFactory节点
允许用户自定义反射工具类
private void reflectorFactoryElement(XNode context) throws Exception {
if (context != null) {
// 获取reflectorFactory节点的type属性
String type = context.getStringAttribute("type");
// 其余操作同上
ReflectorFactory factory = (ReflectorFactory) resolveClass(type).getDeclaredConstructor().newInstance();
configuration.setReflectorFactory(factory);
}
}
10、解析environments节点
举个例子：
<environments default="dev">
<environment id="dev">
<transactionManager type="JDBC">
<property name="" value=""/>
</transactionManager>
<dataSource type="UNPOOLED">
<property name="driver" value="com.mysql.jdbc.Driver"/>
<property name="url" value="jdbc:mysql://*.*.*.8:3306/mybatis"/>
<property name="username" value="${username}"/>
<property name="password" value="${password}"/>
</dataSource>
</environment>
</environments>
解析方法如下：
private void environmentsElement(XNode context) throws Exception {
if (context != null) {
if (environment == null) {
// 首先获取default属性，指定环境
environment = context.getStringAttribute("default");
}
// 解析resources标签下的所有子节点
for (XNode child : context.getChildren()) {
// 获取resource的ID
String id = child.getStringAttribute("id");
// 判断当前默认设置的ID是否是该子节点的ID，如果不是则不解析
if (isSpecifiedEnvironment(id)) {
// 解析事务管理器
TransactionFactory txFactory = transactionManagerElement(child.evalNode("transactionManager"));
// 解析连接池工厂类
DataSourceFactory dsFactory = dataSourceElement(child.evalNode("dataSource"));
// 获取连接池
DataSource dataSource = dsFactory.getDataSource();
// 使用构造器模式创建Environment对象
Environment.Builder environmentBuilder = new Environment.Builder(id)
.transactionFactory(txFactory)
.dataSource(dataSource);
configuration.setEnvironment(environmentBuilder.build());
}
}
}
}
事务管理器的解析代码如下：
// 解析事务管理器和数据库连接池工厂类的逻辑与之前一致，不再详细分析
private TransactionFactory transactionManagerElement(XNode context) throws Exception {
if (context != null) {
String type = context.getStringAttribute("type");
Properties props = context.getChildrenAsProperties();
TransactionFactory factory = (TransactionFactory) resolveClass(type).getDeclaredConstructor().newInstance();
factory.setProperties(props);
return factory;
}
throw new BuilderException("Environment declaration requires a TransactionFactory.");
}
特殊需要注意的是。这里的dataSource的type指定的是UNPOOLED，按照逻辑变成小写是unpooled这个类型是事先在Configuration中定义好的别名。Configuration对象是在XMLConfigBuilder实现创建好的。
代码如下：
public Configuration() {
typeAliasRegistry.registerAlias("JDBC", JdbcTransactionFactory.class);
typeAliasRegistry.registerAlias("MANAGED", ManagedTransactionFactory.class);
typeAliasRegistry.registerAlias("JNDI", JndiDataSourceFactory.class);
typeAliasRegistry.registerAlias("POOLED", PooledDataSourceFactory.class);
typeAliasRegistry.registerAlias("UNPOOLED", UnpooledDataSourceFactory.class);
typeAliasRegistry.registerAlias("PERPETUAL", PerpetualCache.class);
typeAliasRegistry.registerAlias("FIFO", FifoCache.class);
typeAliasRegistry.registerAlias("LRU", LruCache.class);
typeAliasRegistry.registerAlias("SOFT", SoftCache.class);
typeAliasRegistry.registerAlias("WEAK", WeakCache.class);
typeAliasRegistry.registerAlias("DB_VENDOR", VendorDatabaseIdProvider.class);
typeAliasRegistry.registerAlias("XML", XMLLanguageDriver.class);
typeAliasRegistry.registerAlias("RAW", RawLanguageDriver.class);
typeAliasRegistry.registerAlias("SLF4J", Slf4jImpl.class);
typeAliasRegistry.registerAlias("COMMONS_LOGGING", JakartaCommonsLoggingImpl.class);
typeAliasRegistry.registerAlias("LOG4J", Log4jImpl.class);
typeAliasRegistry.registerAlias("LOG4J2", Log4j2Impl.class);
typeAliasRegistry.registerAlias("JDK_LOGGING", Jdk14LoggingImpl.class);
typeAliasRegistry.registerAlias("STDOUT_LOGGING", StdOutImpl.class);
typeAliasRegistry.registerAlias("NO_LOGGING", NoLoggingImpl.class);
typeAliasRegistry.registerAlias("CGLIB", CglibProxyFactory.class);
typeAliasRegistry.registerAlias("JAVASSIST", JavassistProxyFactory.class);
languageRegistry.setDefaultDriverClass(XMLLanguageDriver.class);
languageRegistry.register(RawLanguageDriver.class);
}
11、解析databaseIdProvider节点
解析代码如下：
private void databaseIdProviderElement(XNode context) throws Exception {
DatabaseIdProvider databaseIdProvider = null;
if (context != null) {
String type = context.getStringAttribute("type");
// awful patch to keep backward compatibility
if ("VENDOR".equals(type)) {
type = "DB_VENDOR";
}
Properties properties = context.getChildrenAsProperties();
databaseIdProvider = (DatabaseIdProvider) resolveClass(type).getDeclaredConstructor().newInstance();
databaseIdProvider.setProperties(properties);
}
Environment environment = configuration.getEnvironment();
if (environment != null && databaseIdProvider != null) {
String databaseId = databaseIdProvider.getDatabaseId(environment.getDataSource());
configuration.setDatabaseId(databaseId);
}
}
原理与之前的一致，不再赘述。
12、解析typeHandlers节点
用户注册自定义的类型转换器
解析代码如下；
private void typeHandlerElement(XNode parent) {
if (parent != null) {
for (XNode child : parent.getChildren()) {
// 存在package节点
if ("package".equals(child.getName())) {
// 获取节点name属性
String typeHandlerPackage = child.getStringAttribute("name");
// 解析并注册typeHandler
typeHandlerRegistry.register(typeHandlerPackage);
} else {
// 获取子节点的javaType属性
String javaTypeName = child.getStringAttribute("javaType");
// 获取子节点的jdbcType属性
String jdbcTypeName = child.getStringAttribute("jdbcType");
// 获取子节点的handler属性
String handlerTypeName = child.getStringAttribute("handler");
// 解析类型名
Class<?> javaTypeClass = resolveClass(javaTypeName);
JdbcType jdbcType = resolveJdbcType(jdbcTypeName);
Class<?> typeHandlerClass = resolveClass(handlerTypeName);
// 调用typeHandlerRegistry的register方法注册Type Handler实例。
if (javaTypeClass != null) {
if (jdbcType == null) {
typeHandlerRegistry.register(javaTypeClass, typeHandlerClass);
} else {
typeHandlerRegistry.register(javaTypeClass, jdbcType, typeHandlerClass);
}
} else {
typeHandlerRegistry.register(typeHandlerClass);
}
}
}
}
}
需要注意：mybatis框架中默认注册了一些类型转换器：
public TypeHandlerRegistry(Configuration configuration) {
this.unknownTypeHandler = new UnknownTypeHandler(configuration);
register(Boolean.class, new BooleanTypeHandler());
register(boolean.class, new BooleanTypeHandler());
register(JdbcType.BOOLEAN, new BooleanTypeHandler());
register(JdbcType.BIT, new BooleanTypeHandler());
register(Byte.class, new ByteTypeHandler());
register(byte.class, new ByteTypeHandler());
register(JdbcType.TINYINT, new ByteTypeHandler());
register(Short.class, new ShortTypeHandler());
register(short.class, new ShortTypeHandler());
register(JdbcType.SMALLINT, new ShortTypeHandler());
register(Integer.class, new IntegerTypeHandler());
register(int.class, new IntegerTypeHandler());
register(JdbcType.INTEGER, new IntegerTypeHandler());
register(Long.class, new LongTypeHandler());
register(long.class, new LongTypeHandler());
register(Float.class, new FloatTypeHandler());
register(float.class, new FloatTypeHandler());
register(JdbcType.FLOAT, new FloatTypeHandler());
register(Double.class, new DoubleTypeHandler());
register(double.class, new DoubleTypeHandler());
register(JdbcType.DOUBLE, new DoubleTypeHandler());
register(Reader.class, new ClobReaderTypeHandler());
register(String.class, new StringTypeHandler());
register(String.class, JdbcType.CHAR, new StringTypeHandler());
register(String.class, JdbcType.CLOB, new ClobTypeHandler());
register(String.class, JdbcType.VARCHAR, new StringTypeHandler());
register(String.class, JdbcType.LONGVARCHAR, new StringTypeHandler());
register(String.class, JdbcType.NVARCHAR, new NStringTypeHandler());
register(String.class, JdbcType.NCHAR, new NStringTypeHandler());
register(String.class, JdbcType.NCLOB, new NClobTypeHandler());
register(JdbcType.CHAR, new StringTypeHandler());
register(JdbcType.VARCHAR, new StringTypeHandler());
register(JdbcType.CLOB, new ClobTypeHandler());
register(JdbcType.LONGVARCHAR, new StringTypeHandler());
register(JdbcType.NVARCHAR, new NStringTypeHandler());
register(JdbcType.NCHAR, new NStringTypeHandler());
register(JdbcType.NCLOB, new NClobTypeHandler());
register(Object.class, JdbcType.ARRAY, new ArrayTypeHandler());
register(JdbcType.ARRAY, new ArrayTypeHandler());
register(BigInteger.class, new BigIntegerTypeHandler());
register(JdbcType.BIGINT, new LongTypeHandler());
register(BigDecimal.class, new BigDecimalTypeHandler());
register(JdbcType.REAL, new BigDecimalTypeHandler());
register(JdbcType.DECIMAL, new BigDecimalTypeHandler());
register(JdbcType.NUMERIC, new BigDecimalTypeHandler());
register(InputStream.class, new BlobInputStreamTypeHandler());
register(Byte[].class, new ByteObjectArrayTypeHandler());
register(Byte[].class, JdbcType.BLOB, new BlobByteObjectArrayTypeHandler());
register(Byte[].class, JdbcType.LONGVARBINARY, new BlobByteObjectArrayTypeHandler());
register(byte[].class, new ByteArrayTypeHandler());
register(byte[].class, JdbcType.BLOB, new BlobTypeHandler());
register(byte[].class, JdbcType.LONGVARBINARY, new BlobTypeHandler());
register(JdbcType.LONGVARBINARY, new BlobTypeHandler());
register(JdbcType.BLOB, new BlobTypeHandler());
register(Object.class, unknownTypeHandler);
register(Object.class, JdbcType.OTHER, unknownTypeHandler);
register(JdbcType.OTHER, unknownTypeHandler);
register(Date.class, new DateTypeHandler());
register(Date.class, JdbcType.DATE, new DateOnlyTypeHandler());
register(Date.class, JdbcType.TIME, new TimeOnlyTypeHandler());
register(JdbcType.TIMESTAMP, new DateTypeHandler());
register(JdbcType.DATE, new DateOnlyTypeHandler());
register(JdbcType.TIME, new TimeOnlyTypeHandler());
register(java.sql.Date.class, new SqlDateTypeHandler());
register(java.sql.Time.class, new SqlTimeTypeHandler());
register(java.sql.Timestamp.class, new SqlTimestampTypeHandler());
register(String.class, JdbcType.SQLXML, new SqlxmlTypeHandler());
register(Instant.class, new InstantTypeHandler());
register(LocalDateTime.class, new LocalDateTimeTypeHandler());
register(LocalDate.class, new LocalDateTypeHandler());
register(LocalTime.class, new LocalTimeTypeHandler());
register(OffsetDateTime.class, new OffsetDateTimeTypeHandler());
register(OffsetTime.class, new OffsetTimeTypeHandler());
register(ZonedDateTime.class, new ZonedDateTimeTypeHandler());
register(Month.class, new MonthTypeHandler());
register(Year.class, new YearTypeHandler());
register(YearMonth.class, new YearMonthTypeHandler());
register(JapaneseDate.class, new JapaneseDateTypeHandler());
// issue #273
register(Character.class, new CharacterTypeHandler());
register(char.class, new CharacterTypeHandler());
}
TypeHandlerRegistry的register代码如下：
public void register(Class<?> typeHandlerClass) {
boolean mappedTypeFound = false;
// 获取typeHandler类型的MappedTypes注解。
MappedTypes mappedTypes = typeHandlerClass.getAnnotation(MappedTypes.class);
if (mappedTypes != null) {
for (Class<?> javaTypeClass : mappedTypes.value()) {
// 调用register方法注册
register(javaTypeClass, typeHandlerClass);
mappedTypeFound = true;
}
}
if (!mappedTypeFound) {
register(getInstance(null, typeHandlerClass));
}
}
register重载方法如下：
public void register(Class<?> javaTypeClass, Class<?> typeHandlerClass) {
register(javaTypeClass, getInstance(javaTypeClass, typeHandlerClass));
}
public <T> void register(Class<T> javaType, TypeHandler<? extends T> typeHandler) {
register((Type) javaType, typeHandler);
}
private <T> void register(Type javaType, TypeHandler<? extends T> typeHandler) {
MappedJdbcTypes mappedJdbcTypes = typeHandler.getClass().getAnnotation(MappedJdbcTypes.class);
if (mappedJdbcTypes != null) {
for (JdbcType handledJdbcType : mappedJdbcTypes.value()) {
register(javaType, handledJdbcType, typeHandler);
}
if (mappedJdbcTypes.includeNullJdbcType()) {
register(javaType, null, typeHandler);
}
} else {
register(javaType, null, typeHandler);
}
}
private void register(Type javaType, JdbcType jdbcType, TypeHandler<?> handler) {
if (javaType != null) {
Map<JdbcType, TypeHandler<?>> map = typeHandlerMap.get(javaType);
if (map == null || map == NULL_TYPE_HANDLER_MAP) {
map = new HashMap<>();
}
// 执行注册
map.put(jdbcType, handler);
typeHandlerMap.put(javaType, map);
}
allTypeHandlersMap.put(handler.getClass(), handler);
}
13、解析mappers节点
解析代码如下：
private void mapperElement(XNode parent) throws Exception {
if (parent != null) {
for (XNode child : parent.getChildren()) {
// 如果标签名为package
if ("package".equals(child.getName())) {
// 获取标签name属性
String mapperPackage = child.getStringAttribute("name");
// 调用configuration的addMapper方法注册mapper
configuration.addMappers(mapperPackage);
} else {
// 获取resource属性
String resource = child.getStringAttribute("resource");
// 获取url属性
String url = child.getStringAttribute("url");
// 获取class属性
String mapperClass = child.getStringAttribute("class");
// 如果resource属性存在
if (resource != null && url == null && mapperClass == null) {
ErrorContext.instance().resource(resource);
InputStream inputStream = Resources.getResourceAsStream(resource);
// 使用XMLMapperBuilder解析
XMLMapperBuilder mapperParser = new XMLMapperBuilder(inputStream, configuration, resource, configuration.getSqlFragments());
mapperParser.parse();
} else if (resource == null && url != null && mapperClass == null) { // 如果url属性存在
ErrorContext.instance().resource(url);
InputStream inputStream = Resources.getUrlAsStream(url);
XMLMapperBuilder mapperParser = new XMLMapperBuilder(inputStream, configuration, url, configuration.getSqlFragments());
mapperParser.parse();
} else if (resource == null && url == null && mapperClass != null) { // 如果class属性存在
// 获取Class对象
Class<?> mapperInterface = Resources.classForName(mapperClass);
注册mapper
configuration.addMapper(mapperInterface);
} else {
throw new BuilderException("A mapper element may only specify a url, resource or class, but not more than one.");
}
}
}
}
}
至此关于Configuration的全部属性已经全部解析完成。
整体的解析业务图如下所示：
整体的思想就是创建一Configuration对象，然后解析XML文件，将从XML文件中解析到的数据封装成对应的数据结构，设置到Configuration对象中供后续运行时使用。
