springboot源码分析：Springboot的SPI机制及Condition实现原理

1、概述

用户在日常使用Springboot框架时，一般都会在spring.factories中定义EnableAutoConfiguration中的用户自定义加载类。并且允许用户通过一些Condition注解来实现根据不同的策略来选择使用哪个Bean。

2. 关于ConfigurationClassPostProcessor

该类实现了BeanFactoryPostProcessor，结构图如下：

Spring容器会在初始化的时候调用postProcessBeanFactory，然后在processConfigBeanDefinitions(BeanDefinitionRegistry registry)方法内部创建ConfigurationClassParser，并调用该类的parse方法解析所有带Configuration注解的类，并注册到容器中。

public void processConfigBeanDefinitions(BeanDefinitionRegistry registry) {
	List<BeanDefinitionHolder> configCandidates = new ArrayList<>();
	String[] candidateNames = registry.getBeanDefinitionNames();
        // 从容器中获取最开始被注册进容器的被@Configuration注解标记的类型
	for (String beanName : candidateNames) {
		BeanDefinition beanDef = registry.getBeanDefinition(beanName);
		if (beanDef.getAttribute(ConfigurationClassUtils.CONFIGURATION_CLASS_ATTRIBUTE) != null) {
			if (logger.isDebugEnabled()) {
					logger.debug("Bean definition has already been processed as a configuration class: " + beanDef);
			}
		}
		else if (ConfigurationClassUtils.checkConfigurationClassCandidate(beanDef, this.metadataReaderFactory)) {
                        // 判断这个类是否被@Configuration标记
			configCandidates.add(new BeanDefinitionHolder(beanDef, beanName));
		}
	}

	// Return immediately if no @Configuration classes were found
	if (configCandidates.isEmpty()) {
		return;
	}

	// Sort by previously determined @Order value, if applicable
	configCandidates.sort((bd1, bd2) -> {
		int i1 = ConfigurationClassUtils.getOrder(bd1.getBeanDefinition());
		int i2 = ConfigurationClassUtils.getOrder(bd2.getBeanDefinition());
		return Integer.compare(i1, i2);
	});

	// Detect any custom bean name generation strategy supplied through the enclosing application context
	SingletonBeanRegistry sbr = null;
	if (registry instanceof SingletonBeanRegistry) {
		sbr = (SingletonBeanRegistry) registry;
		if (!this.localBeanNameGeneratorSet) {
			BeanNameGenerator generator = (BeanNameGenerator) sbr.getSingleton(
						AnnotationConfigUtils.CONFIGURATION_BEAN_NAME_GENERATOR);
			if (generator != null) {
				this.componentScanBeanNameGenerator = generator;
				this.importBeanNameGenerator = generator;
			}
		}
	}

	if (this.environment == null) {
		this.environment = new StandardEnvironment();
	}

	// Parse each @Configuration class
	ConfigurationClassParser parser = new ConfigurationClassParser(
				this.metadataReaderFactory, this.problemReporter, this.environment,
				this.resourceLoader, this.componentScanBeanNameGenerator, registry);

	Set<BeanDefinitionHolder> candidates = new LinkedHashSet<>(configCandidates);
	Set<ConfigurationClass> alreadyParsed = new HashSet<>(configCandidates.size());
	do {
                // 调用ConfigurationClassParser对每个候选的Configuration类进行解析
		parser.parse(candidates);
		parser.validate();

		Set<ConfigurationClass> configClasses = new LinkedHashSet<>(parser.getConfigurationClasses());
		configClasses.removeAll(alreadyParsed);

		// Read the model and create bean definitions based on its content
		if (this.reader == null) {
			this.reader = new ConfigurationClassBeanDefinitionReader(
						registry, this.sourceExtractor, this.resourceLoader, this.environment,
						this.importBeanNameGenerator, parser.getImportRegistry());
		}
		this.reader.loadBeanDefinitions(configClasses);
		alreadyParsed.addAll(configClasses);

		candidates.clear();
		if (registry.getBeanDefinitionCount() > candidateNames.length) {
			String[] newCandidateNames = registry.getBeanDefinitionNames();
			Set<String> oldCandidateNames = new HashSet<>(Arrays.asList(candidateNames));
			Set<String> alreadyParsedClasses = new HashSet<>();
			for (ConfigurationClass configurationClass : alreadyParsed) {
				alreadyParsedClasses.add(configurationClass.getMetadata().getClassName());
			}
			for (String candidateName : newCandidateNames) {
				if (!oldCandidateNames.contains(candidateName)) {
					BeanDefinition bd = registry.getBeanDefinition(candidateName);
					if (ConfigurationClassUtils.checkConfigurationClassCandidate(bd, this.metadataReaderFactory) &&
								!alreadyParsedClasses.contains(bd.getBeanClassName())) {
						candidates.add(new BeanDefinitionHolder(bd, candidateName));
					}
				}
			}
			candidateNames = newCandidateNames;
		}
	}
	while (!candidates.isEmpty());

	// Register the ImportRegistry as a bean in order to support ImportAware @Configuration classes
	if (sbr != null && !sbr.containsSingleton(IMPORT_REGISTRY_BEAN_NAME)) {
		sbr.registerSingleton(IMPORT_REGISTRY_BEAN_NAME, parser.getImportRegistry());
	}

	if (this.metadataReaderFactory instanceof CachingMetadataReaderFactory) {
		// Clear cache in externally provided MetadataReaderFactory; this is a no-op
		// for a shared cache since it'll be cleared by the ApplicationContext.
		((CachingMetadataReaderFactory) this.metadataReaderFactory).clearCache();
	}
}

在ConfigurationClassParser中parse方法解析后的被Configuration注解标记并且符合注册条件的都会被放入

private final Map<ConfigurationClass, ConfigurationClass> configurationClasses = new LinkedHashMap<>();

ConfigurationClassParser的parse方法如下：

public void parse(Set<BeanDefinitionHolder> configCandidates) {
    for (BeanDefinitionHolder holder : configCandidates) {
        BeanDefinition bd = holder.getBeanDefinition();
        try {
            if (bd instanceof AnnotatedBeanDefinition) {
                parse(((AnnotatedBeanDefinition) bd).getMetadata(), holder.getBeanName());
            }
            else if (bd instanceof AbstractBeanDefinition && ((AbstractBeanDefinition) bd).hasBeanClass()) {
                parse(((AbstractBeanDefinition) bd).getBeanClass(), holder.getBeanName());
            }
            else {
                parse(bd.getBeanClassName(), holder.getBeanName());
            }
        }
        catch (BeanDefinitionStoreException ex) {
            throw ex;
        }
        catch (Throwable ex) {
            throw new BeanDefinitionStoreException(
                    "Failed to parse configuration class [" + bd.getBeanClassName() + "]", ex);
        }
    }

    this.deferredImportSelectorHandler.process();
}

protected void processConfigurationClass(ConfigurationClass configClass) throws IOException {
    // 此处会调用conditionEvaluator进行评估该类型是否可以注册到容器中，
    // @Conditional注解的原理就是在此处实现的，如果不满足条件，就直接返回。
    if (this.conditionEvaluator.shouldSkip(configClass.getMetadata(), ConfigurationPhase.PARSE_CONFIGURATION)) {
        return;
    }

    ConfigurationClass existingClass = this.configurationClasses.get(configClass);
    if (existingClass != null) {
        if (configClass.isImported()) {
            if (existingClass.isImported()) {
                existingClass.mergeImportedBy(configClass);
            }
            // Otherwise ignore new imported config class; existing non-imported class overrides it.
            return;
        }
        else {
            // Explicit bean definition found, probably replacing an import.
            // Let's remove the old one and go with the new one.
            this.configurationClasses.remove(configClass);
            this.knownSuperclasses.values().removeIf(configClass::equals);
        }
    }

    // Recursively process the configuration class and its superclass hierarchy.
    SourceClass sourceClass = asSourceClass(configClass);
    // 解析Configuration中的嵌套类型。
    do {
        sourceClass = doProcessConfigurationClass(configClass, sourceClass);
    }
    while (sourceClass != null);
    // 将解析到的Configuration类型注册到configurationClasses。
    // 并执行后续的处理操作，比如判断ConditionalOnBean注解就是在这里处理的
    this.configurationClasses.put(configClass, configClass);
}

这里只重点讲下关于Conditional注解的处理流程：
@Conditional注解的解析并处理是在ConditionEvaluator类中进行的代码如下：

/**
 * Determine if an item should be skipped based on {@code @Conditional} annotations.
 * @param metadata the meta data
 * @param phase the phase of the call
 * @return if the item should be skipped
 */
public boolean shouldSkip(@Nullable AnnotatedTypeMetadata metadata, @Nullable ConfigurationPhase phase) {
    // 如果注解类型不是Conditional
    if (metadata == null || !metadata.isAnnotated(Conditional.class.getName())) {
        return false;
    }

    if (phase == null) {
        if (metadata instanceof AnnotationMetadata &&
                ConfigurationClassUtils.isConfigurationCandidate((AnnotationMetadata) metadata)) {
            return shouldSkip(metadata, ConfigurationPhase.PARSE_CONFIGURATION);
        }
        return shouldSkip(metadata, ConfigurationPhase.REGISTER_BEAN);
    }

    List<Condition> conditions = new ArrayList<>();
    // 获取Conditional注解中的values属性
    for (String[] conditionClasses : getConditionClasses(metadata)) {
        for (String conditionClass : conditionClasses) {
            // 获取并实例化Condition类型
            Condition condition = getCondition(conditionClass, this.context.getClassLoader());
            // 添加到Condition集合中供后续使用
            conditions.add(condition);
        }
    }

    // 排序
    AnnotationAwareOrderComparator.sort(conditions);

    for (Condition condition : conditions) {
        ConfigurationPhase requiredPhase = null;
        if (condition instanceof ConfigurationCondition) {
            requiredPhase = ((ConfigurationCondition) condition).getConfigurationPhase();
        }
        if ((requiredPhase == null || requiredPhase == phase) && !condition.matches(this.context, metadata)) {
            // 调用Condition接口的matches方法判断是否需要跳过
            return true;
        }
    }

    return false;
}

再介绍matcher方法的实现之前需要先介绍下Conditional这个注解以及Condition这个接口。
在Conditional注解内部的value属性中，用户可以自己定义Condition接口的实现类。
Conditional注解的代码如下：

@Target({ElementType.TYPE, ElementType.METHOD})
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface Conditional {

	/**
	 * All {@link Condition Conditions} that must {@linkplain Condition#matches match}
	 * in order for the component to be registered.
	 */
        // 这里已经提示用户，Class类型必须是Condition类型
	Class<? extends Condition>[] value();

}

Condition接口的代码如下：

@FunctionalInterface
public interface Condition {

	/**
	 * Determine if the condition matches.
	 * @param context the condition context
	 * @param metadata metadata of the {@link org.springframework.core.type.AnnotationMetadata class}
	 * or {@link org.springframework.core.type.MethodMetadata method} being checked
	 * @return {@code true} if the condition matches and the component can be registered,
	 * or {@code false} to veto the annotated component's registration
	 */
        // 注释中已经说明了该方法的目的是判断是否符合条件
	boolean matches(ConditionContext context, AnnotatedTypeMetadata metadata);

}

用户可以在Conditional注解中实现自己定制化的Condition接口。

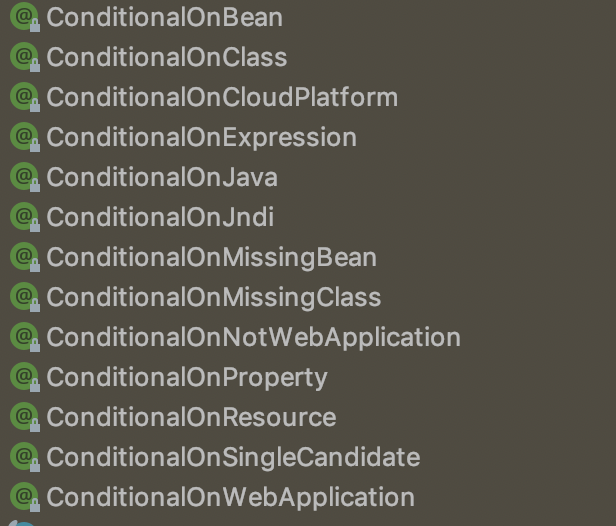

在AutoConfig包下Spring有提供给用户一些可以直接使用的Conditional注解的扩展注解，这里列举下这些注解的实现：

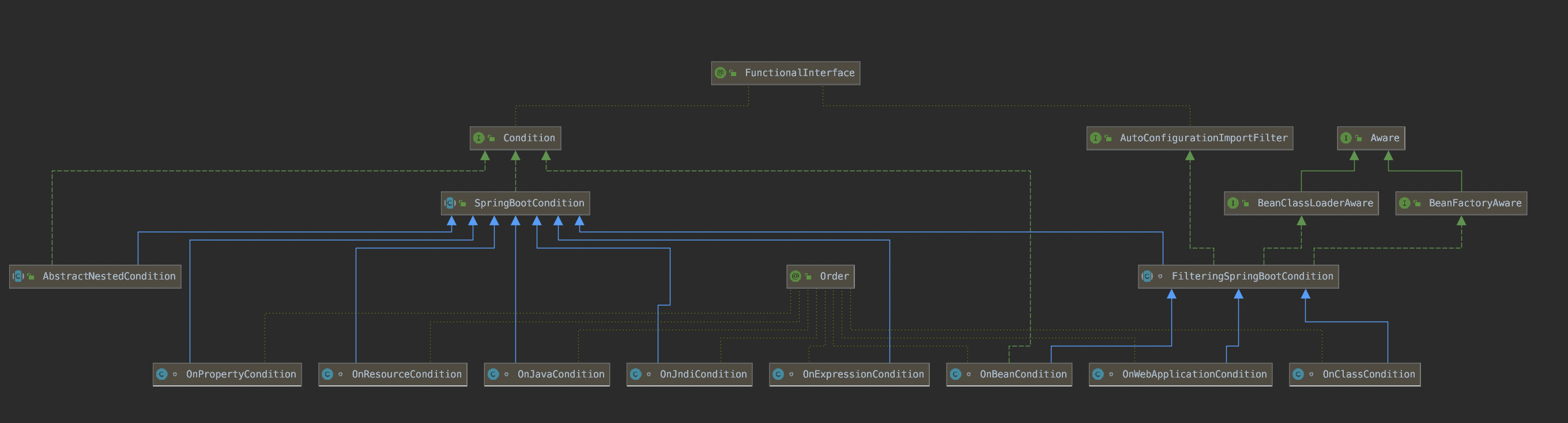

先来看下Condition及其实现类的结构：

在类结构图中可以看到，所有的各种判定情况统一继承SpringBootCondition类。
所以当ConditionEvaluator类的shouldSkip方法调用Condition接口的matches方法时，实际上会调用SpringBootCondition类的match方法，此处属于模版模式的体现。
接下来看下SpringBootCondition类的matches()方法：

@Override
public final boolean matches(ConditionContext context, AnnotatedTypeMetadata metadata) {
    // 获取类型或者方法名
    String classOrMethodName = getClassOrMethodName(metadata);
    try {
        // 调用子类来执行具体的判定操作
        ConditionOutcome outcome = getMatchOutcome(context, metadata);
        logOutcome(classOrMethodName, outcome);
        recordEvaluation(context, classOrMethodName, outcome);
        // 返回判定结果
        return outcome.isMatch();
    }
    catch (NoClassDefFoundError ex) {
        throw new IllegalStateException("Could not evaluate condition on " + classOrMethodName + " due to "
                + ex.getMessage() + " not found. Make sure your own configuration does not rely on "
                + "that class. This can also happen if you are "
                + "@ComponentScanning a springframework package (e.g. if you "
                + "put a @ComponentScan in the default package by mistake)", ex);
    }
    catch (RuntimeException ex) {
        throw new IllegalStateException("Error processing condition on " + getName(metadata), ex);
    }
}

ConditionOutcome是对判断结果的封装。可以简单理解为true | false
接下来介绍下不同的实现类型：

3.1、OnClassCondition

该类是用来处理ConditionalOnClass和ConditionalOnMissingClass注解的。
getMatchOutcome()方法如下：

@Override
public ConditionOutcome getMatchOutcome(ConditionContext context, AnnotatedTypeMetadata metadata) {
    ClassLoader classLoader = context.getClassLoader();
    ConditionMessage matchMessage = ConditionMessage.empty();
    // 处理ConditionalOnClass注解的情况
    List<String> onClasses = getCandidates(metadata, ConditionalOnClass.class);
    if (onClasses != null) {
        // 判断是否能够在Classpath下找到这个类
        List<String> missing = filter(onClasses, ClassNameFilter.MISSING, classLoader);
        if (!missing.isEmpty()) {
            // 返回没有找到目标类，匹配失败
            return ConditionOutcome.noMatch(ConditionMessage.forCondition(ConditionalOnClass.class)
                    .didNotFind("required class", "required classes").items(Style.QUOTE, missing));
        }
        //返回存在目标类，匹配成功
        matchMessage = matchMessage.andCondition(ConditionalOnClass.class)
                .found("required class", "required classes")
                .items(Style.QUOTE, filter(onClasses, ClassNameFilter.PRESENT, classLoader));
    }
    // 处理ConditionalOnMissingClass注解的情况
    List<String> onMissingClasses = getCandidates(metadata, ConditionalOnMissingClass.class);
    if (onMissingClasses != null) {
        // 判断是否有存在该目标类的情况
        List<String> present = filter(onMissingClasses, ClassNameFilter.PRESENT, classLoader);
        // 如果存在就返回匹配失败
        if (!present.isEmpty()) {
            return ConditionOutcome.noMatch(ConditionMessage.forCondition(ConditionalOnMissingClass.class)
                    .found("unwanted class", "unwanted classes").items(Style.QUOTE, present));
        }
        // 不存在目标类，就返回匹配成功
        matchMessage = matchMessage.andCondition(ConditionalOnMissingClass.class)
                .didNotFind("unwanted class", "unwanted classes")
                .items(Style.QUOTE, filter(onMissingClasses, ClassNameFilter.MISSING, classLoader));
    }
    // 返回匹配结果
    return ConditionOutcome.match(matchMessage);
}

3.2、OnBeanCondition

该类用于处理ConditionalOnBean、ConditionalOnMissingBean以及ConditionalOnSingleCandidate注解。
OnBeanCondition的处理时机是在全部的bean都被解析注册完成后才会最后做处理
OnBeanCondition是通过FilteringSpringBootCondition的match()方法驱动的：

@Override
public boolean[] match(String[] autoConfigurationClasses, AutoConfigurationMetadata autoConfigurationMetadata) {
    ConditionEvaluationReport report = ConditionEvaluationReport.find(this.beanFactory);
    // 调用子类的getOutComes来实现扫描已经注册的bean的ConditionOnBean的注解
    ConditionOutcome[] outcomes = getOutcomes(autoConfigurationClasses, autoConfigurationMetadata);
    boolean[] match = new boolean[outcomes.length];
    for (int i = 0; i < outcomes.length; i++) {
        match[i] = (outcomes[i] == null || outcomes[i].isMatch());
        if (!match[i] && outcomes[i] != null) {
            logOutcome(autoConfigurationClasses[i], outcomes[i]);
            if (report != null) {
                report.recordConditionEvaluation(autoConfigurationClasses[i], this, outcomes[i]);
            }
        }
    }
    return match;
}

getOutComes方法如下：

@Override
protected final ConditionOutcome[] getOutcomes(String[] autoConfigurationClasses,
        AutoConfigurationMetadata autoConfigurationMetadata) {
    ConditionOutcome[] outcomes = new ConditionOutcome[autoConfigurationClasses.length];
    // 遍历AutoConfigurable配置中的全部被ConditionalOnBean注解标记的类
    for (int i = 0; i < outcomes.length; i++) {
        String autoConfigurationClass = autoConfigurationClasses[i];
        if (autoConfigurationClass != null) {
            // 扫描类型是否存在ConditionalOnBean注解
            Set<String> onBeanTypes = autoConfigurationMetadata.getSet(autoConfigurationClass, "ConditionalOnBean");
            // 调用getOutcome方法
            outcomes[i] = getOutcome(onBeanTypes, ConditionalOnBean.class);
            // 如果返回null则可能代表存在匹配结果
            if (outcomes[i] == null) {
                Set<String> onSingleCandidateTypes = autoConfigurationMetadata.getSet(autoConfigurationClass,
                        "ConditionalOnSingleCandidate");
                outcomes[i] = getOutcome(onSingleCandidateTypes, ConditionalOnSingleCandidate.class);
            }
        }
    }
    // 如果返回null则代表匹配成功。。。。
    return outcomes;
}

private ConditionOutcome getOutcome(Set<String> requiredBeanTypes, Class<? extends Annotation> annotation) {
    // 调用filter方法判断是否存在该bean的类型
    List<String> missing = filter(requiredBeanTypes, ClassNameFilter.MISSING, getBeanClassLoader());
    if (!missing.isEmpty()) {
        // 如果不存在，则返回不匹配结果
        ConditionMessage message = ConditionMessage.forCondition(annotation)
                .didNotFind("required type", "required types").items(Style.QUOTE, missing);
        return ConditionOutcome.noMatch(message);
    }
    // 如果返回null则代表匹配成功。。。。
    return null;
}

最后在AutoConfigurationImportSelector的filter中实现对不匹配的bean结果的剔除的。

private List<String> filter(List<String> configurations, AutoConfigurationMetadata autoConfigurationMetadata) {
    long startTime = System.nanoTime();
    String[] candidates = StringUtils.toStringArray(configurations);
    boolean[] skip = new boolean[candidates.length];
    boolean skipped = false;
    // 判断如果全部都匹配上了直接跳过即可，只要其中有一个没有匹配那么就需要重新逐个判断后放入结果中。
    for (AutoConfigurationImportFilter filter : getAutoConfigurationImportFilters()) {
        invokeAwareMethods(filter);
        boolean[] match = filter.match(candidates, autoConfigurationMetadata);
        for (int i = 0; i < match.length; i++) {
            if (!match[i]) {
                skip[i] = true;
                candidates[i] = null;
                skipped = true;
            }
        }
    }
    if (!skipped) {
        return configurations;
    }
    List<String> result = new ArrayList<>(candidates.length);
    for (int i = 0; i < candidates.length; i++) {
        if (!skip[i]) {
            result.add(candidates[i]);
        }
    }
    if (logger.isTraceEnabled()) {
        int numberFiltered = configurations.size() - result.size();
        logger.trace("Filtered " + numberFiltered + " auto configuration class in "
                + TimeUnit.NANOSECONDS.toMillis(System.nanoTime() - startTime) + " ms");
    }
    return new ArrayList<>(result);
}

通过上述代码可以看到ConditionalOnBean注解实际上判断的是

3.3、OnJavaCondition

该类判断当前的JVM参数是否符合预期，如果不符合则该类不被注册。

3、Springboot的SPI机制

Springboot加载sprng.factories文件中的EnableAutoConfiguration的原理如下：

public void parse(Set<BeanDefinitionHolder> configCandidates) {
    for (BeanDefinitionHolder holder : configCandidates) {
        BeanDefinition bd = holder.getBeanDefinition();
        try {
            if (bd instanceof AnnotatedBeanDefinition) {
                parse(((AnnotatedBeanDefinition) bd).getMetadata(), holder.getBeanName());
            }
            else if (bd instanceof AbstractBeanDefinition && ((AbstractBeanDefinition) bd).hasBeanClass()) {
                parse(((AbstractBeanDefinition) bd).getBeanClass(), holder.getBeanName());
            }
            else {
                parse(bd.getBeanClassName(), holder.getBeanName());
            }
        }
        catch (BeanDefinitionStoreException ex) {
            throw ex;
        }
        catch (Throwable ex) {
            throw new BeanDefinitionStoreException(
                    "Failed to parse configuration class [" + bd.getBeanClassName() + "]", ex);
        }
    }
    // 解析延迟加载的类，比如ImportSelector注解和spring.factories中的EnableAutoConfiguration类型
    this.deferredImportSelectorHandler.process();
}

通过AutoConfigurationImportSelector类的getAutoConfigurationEntry方法来解析。

protected AutoConfigurationEntry getAutoConfigurationEntry(AutoConfigurationMetadata autoConfigurationMetadata,
        AnnotationMetadata annotationMetadata) {
    if (!isEnabled(annotationMetadata)) {
        return EMPTY_ENTRY;
    }
    AnnotationAttributes attributes = getAttributes(annotationMetadata);
    List<String> configurations = getCandidateConfigurations(annotationMetadata, attributes);
    configurations = removeDuplicates(configurations);
    Set<String> exclusions = getExclusions(annotationMetadata, attributes);
    checkExcludedClasses(configurations, exclusions);
    configurations.removeAll(exclusions);
    // 通过filter来判断当前的类是否在autoconfigure中能够找到
    configurations = filter(configurations, autoConfigurationMetadata);
    fireAutoConfigurationImportEvents(configurations, exclusions);
    return new AutoConfigurationEntry(configurations, exclusions);
}

protected List<String> getCandidateConfigurations(AnnotationMetadata metadata, AnnotationAttributes attributes) {
    List<String> configurations = SpringFactoriesLoader.loadFactoryNames(getSpringFactoriesLoaderFactoryClass(),
            getBeanClassLoader());
    Assert.notEmpty(configurations, "No auto configuration classes found in META-INF/spring.factories. If you "
            + "are using a custom packaging, make sure that file is correct.");
    return configurations;
}

以上就是Springboot加载spring.factories中的EnableAutoConfiguration的类型。
PS：可以补充下Configuration解析原理。
